How to Set Up Panasonic SSD Recording and Media Management

First decide which media the camera, the format, and the shooting style actually call for. The candidates are USB-SSD, P2, SD/CFexpress cards, and an external RAW recorder. Panasonic spans a few very different recording worlds. A LUMIX GH6, GH7, G9II, or S5IIX-style setup may record directly to a USB-C SSD for high-bitrate internal codecs. A VariCam 35 or VariCam LT workflow is more likely to involve expressP2, P2, or microP2, plus an SD proxy slot or a dedicated RAW recorder. VariCam PURE uses Codex Capture Drive media for V-RAW, not a generic USB-C SSD. Treating all of those as “SSD recording” creates confusion on set and in post.

Different Panasonic recording media paths are separate ecosystems, not interchangeable versions of the same workflow.

Panasonic workflow	Typical recording media	Best fit	Offload and post implication
LUMIX USB-SSD, such as GH6, GH7, G9II, or S5IIX where supported	USB-C SSD within the camera’s supported limits	High-bitrate internal modes that the camera explicitly allows to SSD	Treat the SSD as camera original media. Test the exact drive, cable, firmware, power setup, and recording mode.
VariCam internal recording	expressP2, P2, microP2, plus possible SD proxy media depending on model and setup	Professional master, sub-recorder, dailies, and proxy workflows	Preserve the full P2 structure. Plan for Panasonic drivers, P2-aware viewing, and metadata-safe offload.
VariCam PURE V-RAW	Codex Capture Drive with Codex V-RAW recorder	Uncompressed 4K RAW workflows up to the supported frame rates	Use Codex handling, offload, preview, and dailies tools. Do not treat the media like a generic USB SSD.

For most production teams, the rule is simple. Use USB-SSD recording when all three of these are true:

The camera explicitly supports it for the format you need
The drive is on the camera vendor’s confirmed list, or your team has tested it at your exact settings
Your data workflow can treat removable drives as camera originals

If any of those are uncertain, build the day around the camera’s native media and use SSDs for verified offload instead.

Match the media to the Panasonic camera family

Panasonic’s current LUMIX USB-SSD workflow solves a specific problem. Some codecs and frame sizes generate more data than SD cards can reasonably support. Others aren't recordable to SD at all. Panasonic notes, for example, that GH7 can record 5.7K 30p ProRes RAW HQ in-camera, but not to SD card. On cameras that support USB-SSD recording, the SSD becomes the recording destination for those heavier modes. The compatibility constraints are concrete. Panasonic’s GH6 support notes say external SSD recording requires firmware version 2.2 or later, uses SuperSpeed USB 10Gbps, and supports USB Type-C SSDs up to 2 TB. Panasonic also recommends using SSDs whose operation has been confirmed by Panasonic. Panasonic makes clear that this isn't a guarantee for every condition or every unit. That wording is load-bearing, because “USB-C SSD” isn't a single performance class. A tiny portable drive, an NVMe blade in an enclosure, and a bus-powered rugged SSD may all mount on a computer. They can still behave differently on a camera powered from a small battery, hanging off a rig, recording long takes in heat. For LUMIX USB-SSD recording, treat these as minimum expectations:

Camera firmware supports USB-SSD recording for that body
SSD capacity is within the camera’s supported limit, commonly up to 2 TB on documented models such as GH6
Drive and cable support the required USB generation, such as USB 3.2 Gen 2 / 10Gbps where specified
The specific recording mode is allowed to record to SSD
You have formatted the drive in the camera before production use
Your team has tested the exact drive, cable, power setup, and record mode in a long-form test

The last line is the one that saves shoots. A drive that records a 20-second test clip may still fail during a long interview, a high frame rate take, or a hot exterior day.

Don't mix up USB-SSD with P2 and Codex workflows

On the professional cinema side, Panasonic workflows are built around different media assumptions. VariCam 35 records to expressP2, P2, and microP2 media depending on configuration. Its main recorder supports formats including AVC-Intra 4K, AVC-Intra 2K, and AVC-Intra 100/200, plus multiple ProRes options. Your team can use the sub recorder for lower-resolution or proxy-style media, depending on the setup. VariCam 35 also supports simultaneous recording of a master and dailies. It adds in-camera color grading, where CDL and 3D LUT information can be stored with main and sub recordings. That media management feature means editorial can receive lighter material quickly while the finishing path keeps the camera originals intact. VariCam PURE is different again, because V-RAW recording uses a Codex V-RAW 2.0 Recorder and Codex Capture Drive media. Panasonic describes this as uncompressed 4K RAW up to 120 fps, with offload, preview, and dailies handled through Codex workflow tools. If the show is shooting V-RAW, plan for Codex media handling from the start. Don't assume the DIT can pull a commodity USB SSD and copy it like a LUMIX drive. P2 workflows also have computer-side requirements. Panasonic notes that a PC needs the included P2 driver to recognize, copy, and transfer P2 files. P2 Viewer Plus or compatible editing software may be required for preview. That affects offload stations, editorial machines, and any “just plug it in” expectations.

Set the camera mode before formatting and testing media

Select the recording mode before media testing. The drive that works for 4K LongG may not be appropriate for ProRes, RAW, high frame rate, or open gate recording. On VariCam, system operation is governed by settings such as frequency and main pixel, plus main codec and high speed. Changing frequency can require a restart. VariCam LT similarly separates resolution, codec, and frame rate from SDI RAW output, VFR, and proxy behavior. The camera isn't simply “in 4K.” It's in a full system mode that controls which media paths and recording options are valid. For LUMIX USB-SSD work, the same production logic applies even if the menus look simpler. Decide these settings first:

Container and codec, such as MOV, ProRes, ProRes RAW, or another supported mode
Resolution and sensor area, such as UHD, DCI, open gate, or cropped modes
Frame rate and whether the mode is normal, high frame rate, or S&Q
Bit depth and chroma sampling where selectable
Audio requirements
Monitoring LUT versus baked-in look
Whether cards, proxies, or external recorders are part of the same workflow

Some Panasonic models disable features when USB-SSD mode is enabled. G9II documentation notes that when USB-SSD is set to on, several ordinary functions stop working:

Recording to cards and playback of card media are unavailable
Double card slot functions are unavailable
Certain USB, firmware update, and copy functions are unavailable

The same documentation notes power requirements for some higher-frame-rate video modes, including use of an AC adaptor and DC coupler for specified conditions. USB-SSD changes the camera’s operating state. Camera assistants, DITs, and post supervisors all need to know what becomes unavailable when SSD recording is enabled.

Format in the camera and keep the media identity stable

Format camera-original media in the camera that will record it. That applies whether the “media” is a LUMIX USB-SSD, a P2 card, or a Codex Capture Drive. Computer formatting can create the wrong file system, the wrong allocation behavior, or a partition layout the camera doesn't expect. It can also leave hidden file clutter behind. A drive like that may mount fine on a laptop and still behave badly in-camera. A sane formatting workflow starts with a controlled naming system. The physical label, the camera reel, and the volume name should agree with the offload folder as closely as possible. If the camera doesn't allow custom volume names, use your own drive labels and offload folder names to preserve the identity. A practical reel naming pattern might include:

Camera letter, such as A, B, or C
Shooting day, such as D01
Media index, such as 001, 002, 003
Optional project code for multi-show environments

For example, a physical SSD label might read A_D01_003. The offload folder should carry the same identity. If the camera writes a different internal volume name, record that in the camera report or media log. The goal is that nobody has to guess whether “Untitled,” “NO NAME,” or “SSD_1” is the same drive as the one in the shot log.

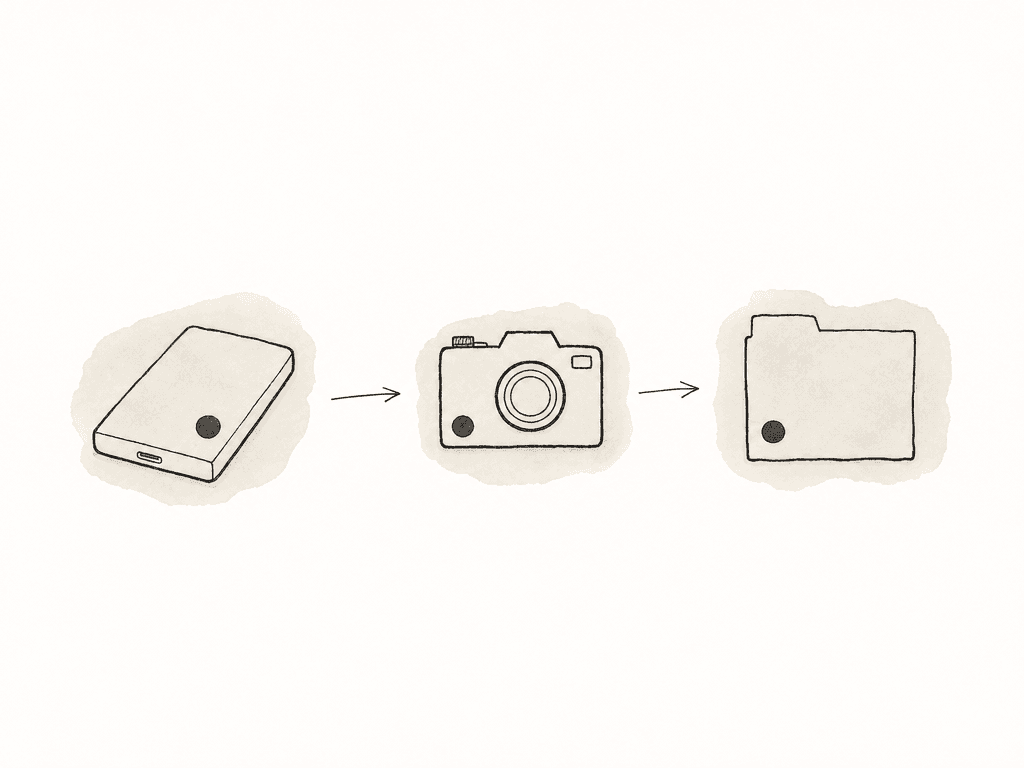

A stable media identity should follow the SSD from camera use through offload.

Before the shoot, put every SSD through the same four steps:

Format the drive in the camera that will record it.
Record a test clip in the final production mode.
Power-cycle the camera, then play the clip back from the camera.
Offload that test clip through the same ingest station your team will use on set.

This catches three problems early. The camera can't sustain the mode, the computer can't read the media as expected, or the folder structure isn't what editorial expects.

Choose recording modes around the post path

The right Panasonic recording mode is the one that preserves the creative intent while keeping the rest of the pipeline honest. For color-managed work, V-Log/V-Gamut is usually about keeping latitude for post rather than making the on-set image look pretty. Panasonic describes V-Log as having characteristics similar to a film scan log curve, designed to preserve exposure information for grading. So plan monitoring separately from recording. A LUT on a monitor or proxy can help the director, DP, and editor see intent without forcing that look into the master. VariCam workflows make this explicit. You can select V-Log, V-709, or graded views for the sub-recorder and EVF, and for LCD and external monitor output, depending on configuration. Panasonic’s LUT guidance also cautions that your team generally shouldn't bake a LUT into the master, because it restricts adjustment in post. Applying a LUT to monitoring or proxy files is often useful. Burning a LUT into originals is a finishing decision. For editorial speed, simultaneous master and sub/proxy recording can be more valuable than raw bandwidth. VariCam 35 can record a master and dailies at the same time. VariCam LT has related master and proxy capabilities depending on configuration. If the show needs fast dailies, have your team test file names, timecode, and clip metadata before the first shoot day, along with LUT handling. Matching proxy and master names determines how painless conform will be later. For LUMIX SSD shoots, where the SSD may hold the only high-quality original, decide whether editorial will cut from those originals, transcodes, or proxies. If editors are remote, settle that question before the first shoot day. A day’s worth of ProRes RAW or high-bitrate MOV files may need transcoding before anyone can view them.

Rig the SSD like camera media

The most common USB-SSD failures are unglamorous. A bad cable, a stressed connector, or an unsecured drive causes most of them. Accidental unplugs, an overheated drive, and power behavior that your team never tested cause the rest. Mount a production SSD so the cable can't wiggle at the camera port. Short certified cables are safer than long flexible ones, but only if they don't put side-load on the USB-C connector. Cage clamps, SSD mounts, and right-angle adapters can help, and every extra adapter is another failure point. Test the final physical build, not just the drive model.

A securely mounted SSD and restrained cable reduce the risk of connector movement during recording.

Build the rig around these failure modes:

Cable bumped during handheld or gimbal work
SSD mount blocking heat dissipation
Camera battery swap interrupting a recording state
Camera assistant removing a drive before recording has fully stopped
Same-looking empty and exposed drives mixing in a pouch

Watch the access light. On Codex and other professional recorders, media status indicators are part of safe handling. On USB-SSD workflows, the camera screen and drive activity indicators are your equivalent. Don't unplug because the tally light stopped. Wait until the camera has fully ended the clip and returned control to the camera operator.

Manage multiple SSDs with a reel-based rotation

Once SSDs become camera originals, they need the same discipline as camera cards. The DIT or media manager should know which drives are blank and which are exposed, which are copying and which are verified, and which are cleared for reuse. Don't let the camera team and data team invent separate status systems. A simple color or case-position system works well:

Blank and formatted media stays in one marked area
Exposed media goes into a separate protected area
Media being copied stays physically attached to the ingest station
The media manager seals or flags verified media after all destinations pass verification
Media approved for reuse returns only after the media manager signs it back

“I copied it” is not a reason to erase or reformat on camera. Reuse should require verified copies to the agreed number of destinations, plus a readable spot check. Some productions require camera originals to stay untouched until editorial confirms. In that case, treat the SSDs like mags and hold them for the day or the entire shoot. Capacity planning should account for more than total runtime. Panasonic’s 2 TB guidance on GH6-style USB-SSD workflows means you may need more physical drives than expected for all-day ProRes or RAW recording. Smaller drives can also reduce loss exposure. Losing or damaging one 2 TB drive is worse than one 1 TB drive if your team splits the day cleanly across reels.

Preserve the folder structure during offload

Copy the entire camera-created volume structure during offload, not just the visible movie files. Panasonic P2 media is especially dependent on its file and metadata structure, and P2-aware tools or drivers may be required. LUMIX SSD folders are more familiar to most NLEs, but the same rule applies: preserve what the camera wrote. A verified offload process should create at least two independent copies before your team reuses media. Many productions use three: primary shuttle, backup shuttle, and nearline or shared storage, and verify at copy time.

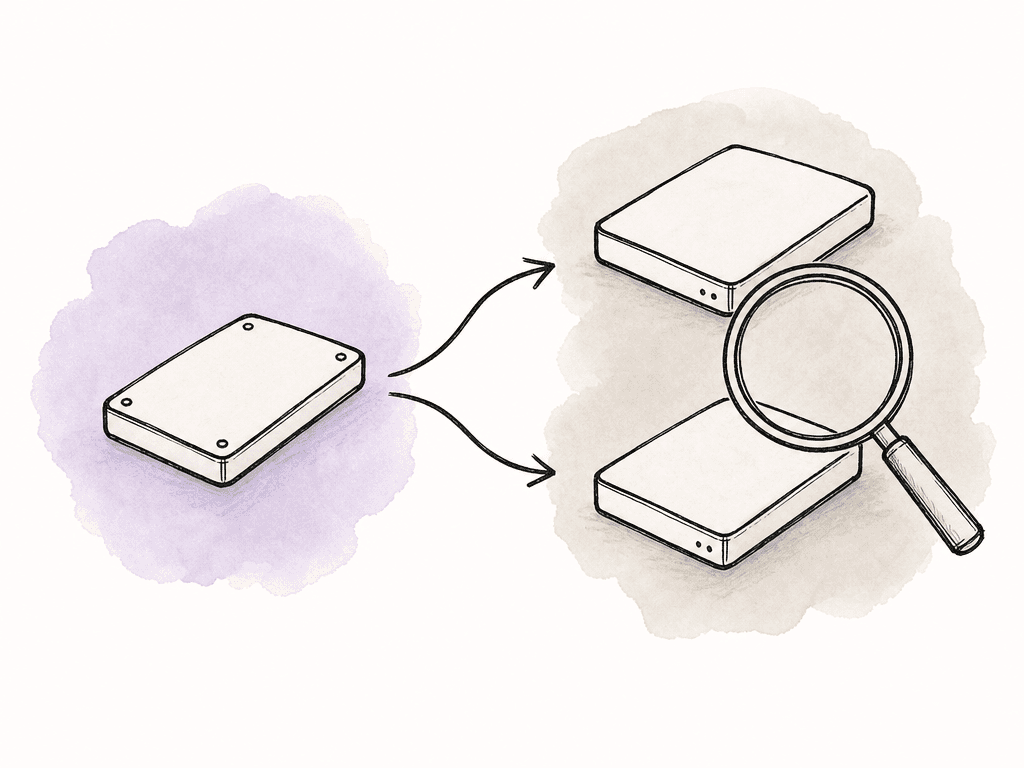

Verified offload means the camera original is copied to separate destinations and checked before reuse.

Use checksum-based copying rather than drag-and-drop. The copy tool should calculate a source hash and destination hash, then report a pass or fail. After that, spot check playback from the destination rather than from the original SSD still attached to the camera or reader. If you're dealing with P2, make sure the offload station has the Panasonic driver or compatible software needed to read and preview the files correctly. The media log should capture:

Reel or drive ID
Camera letter
Shoot day
First and last clip, if practical
Recording format
Timecode notes or resets
LUT or color pipeline notes
Offload destinations
Verification result
Person responsible for the copy

The log needs to be unambiguous when editorial asks, “Where is A camera, day 2, card 7?”

Handle split clips and long takes deliberately

Some Panasonic recording formats can split long recordings into multiple files or clips while the camera presents them as one continuous take. VariCam documentation notes that P2 recordings may continue automatically as another clip after certain duration thresholds. Those continued clips may appear as separate clips in nonlinear editing software or on a computer. AJ-PX270 documentation also includes file split options such as one file, split, and short split depending on recording format and media. That behavior is normal, but it becomes a conform risk if someone copies only part of the media or renames files manually. Long interviews and concerts are where this shows up most, along with lectures and live events. For long-form recording days, warn editorial that split files may be normal. Offload whole volumes. Avoid manual renaming inside camera folders. If your team transcodes, confirm that the transcode tool joins or interprets spanned clips correctly. Keep the originals intact until picture lock and final conform are safe.

The setup that usually works

For a LUMIX USB-SSD shoot, the clean setup is:

A camera body on current firmware
A Panasonic-confirmed or production-tested USB-C SSD within the supported capacity limit
A short, reliable cable
In-camera formatting
A record test at the exact delivery mode

Use USB-SSD when the format needs it, or when the workflow benefits from direct-to-drive capture. For VariCam, separate the master, proxy, LUT, and RAW decisions early. If you record internally, plan around P2 or expressP2 behavior and required computer drivers. If you record V-RAW, plan around Codex media and Codex offload. Use simultaneous master and dailies when it helps editorial, but test naming and conform before production. For every Panasonic workflow, the media rule is the same. The recording format decides the media, the media decides the offload plan, and the offload plan decides when anything can be erased. Make those three decisions in that order, and SSD recording becomes a production advantage instead of a data management gamble.

FAQ

No. Use USB-SSD recording only on Panasonic cameras that explicitly support it, with firmware that enables the feature, and with a drive that meets the camera’s capacity and USB speed requirements. For example, GH6 support notes specify firmware 2.2 or later, SuperSpeed USB 10Gbps, and SSDs up to 2 TB. Panasonic also recommends using SSDs whose operation has been confirmed. That still doesn't replace testing the exact drive, cable, and power setup in the exact recording mode before production.

Format camera-original media in the camera that will record it. Computer formatting can create file system, partition, or hidden-file issues that may not be obvious until recording. After formatting, record a test clip in the final production mode, power-cycle the camera, play the clip back in-camera, and offload it through the same ingest station that will be used on set.

No. LUMIX USB-SSD recording, P2 or expressP2 recording, and Codex-based VariCam RAW recording are different workflows. LUMIX bodies such as GH6, GH7, G9II, and S5IIX-style setups may support direct USB-SSD recording for certain high-bitrate modes. VariCam systems more commonly use P2, expressP2, or microP2, plus proxy media or external RAW systems. VariCam PURE V-RAW uses Codex Capture Drive media, not generic USB-C SSDs.

The codec, resolution, and frame rate determine whether a drive and camera configuration are valid. So do the RAW or ProRes mode, the bit depth, and the proxy behavior. A drive that works for a lower-bitrate 4K mode may fail for ProRes or RAW, and it may not be supported at all for high frame rate or open gate recording. Testing should always be done at the exact settings planned for the shoot.

Treat SSDs as camera originals, not accessories. Use a clear reel or drive ID system that connects the physical label to the camera report, the offload folder, and the media log. Keep blank, exposed, and copying media physically separated, and separate verified media from media cleared for reuse. Don't erase or reformat a drive until the agreed number of checksum-verified copies has been made and the media manager has released it for reuse.

Preserve the full camera folder structure, but don't rely on folder names alone for the production record. Add custom metadata fields for camera letter, shoot day, and reel ID. Add recording format and LUT intent, then copy destination and verification status. Those fields are what let assistants and post supervisors find the right media later.
